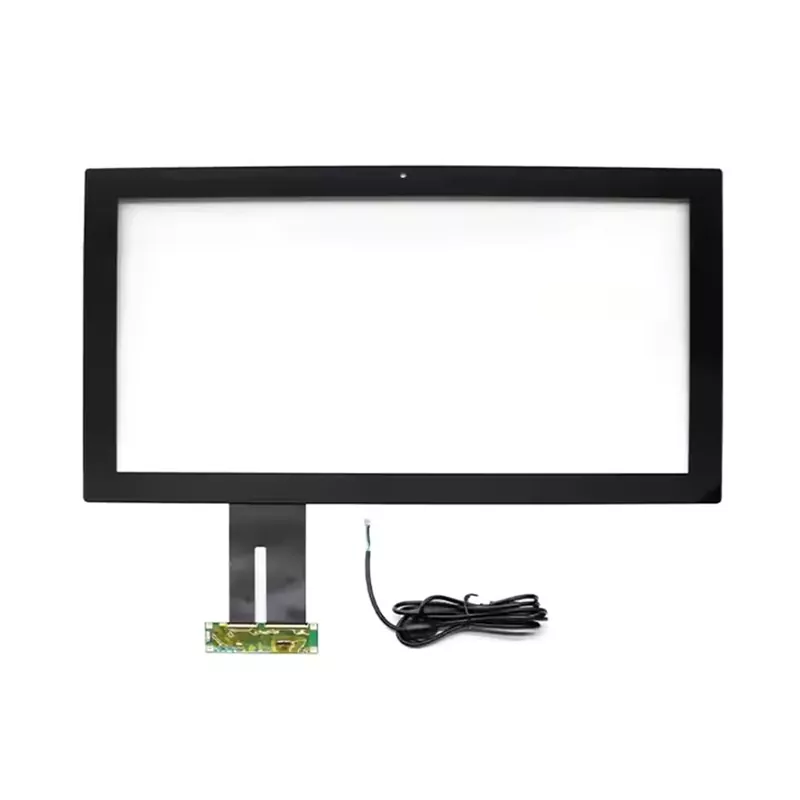

21,5 tommer USB -interface kapacitiv berøringsskærm

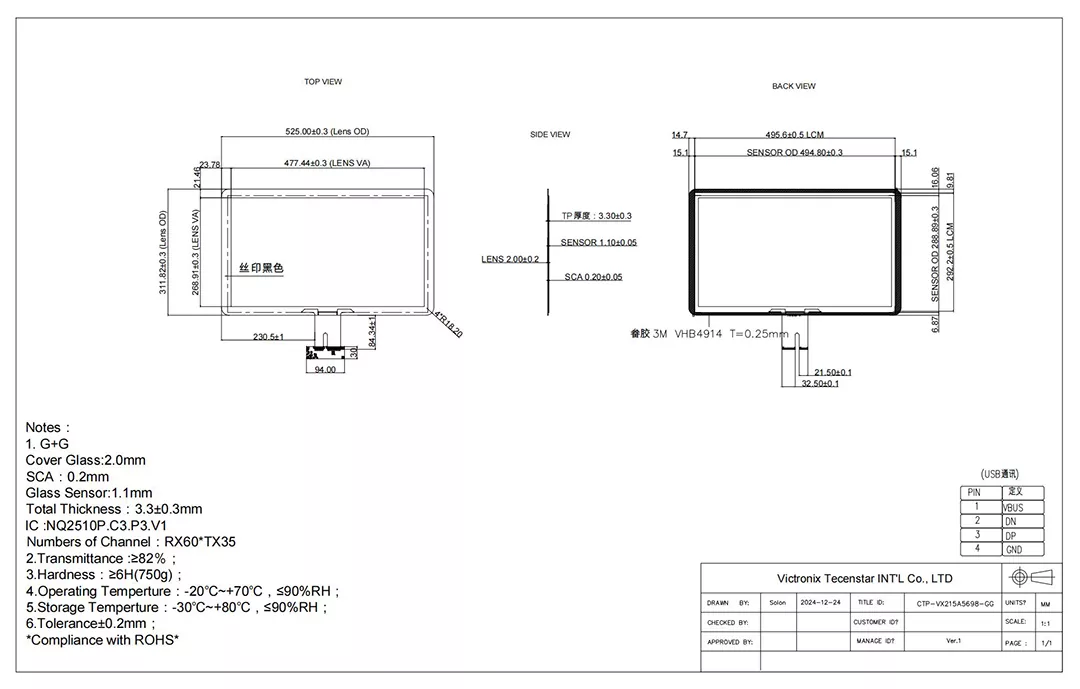

In the age of intelligence, TFT MODULE helps us to present the required data in the form of images. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 21.5 inch USB interface Capacitive Touch Screen? Firstly, it delivers exceptional optical performance with ≥85% transmittance and robust surface hardness of ≥6H. Secondly, it is built with a robust G+G (Glass-Glass) structure, combines a 2.0mm cover glass, 0.2mm SCA (Sensor Cover Assembly), and a 1.1mm glass sensor, delivering a total thickness of just 3.30mm ±0.3mm. Besides, it passes stringent environmental validations including thermal shock cycling (-20°C ↔ +70°C), high-temperature storage (80°C), and humidity resistance (60°C/90% RH).

This Victronix 21.5inch TFT Module is suitable for integrated displays, the panel meets exacting mechanical and electrical standards, ensuring consistent performance in diverse conditions. Victronix guarantees precision manufacturing with strict quality controls, making this solution a trusted choice for next-generation devices.

· Hardness ≥6H: Scratch-resistant toughened glass ensures long-term use even in harsh environments.

· Transmittance ≥85%: Crystal-clear view area (477.44mm x 268.91mm) enhances display visibility.

· 10-Point Multi-Touch: Supports intuitive multi-touch gestures for enhanced user interaction.

· USB Interface: Simplified integration with host systems Flexible

· ESD Protection: ±8kV (air) and ±2kV (contact) ESD immunity ensures stability in electrostatic environments.
